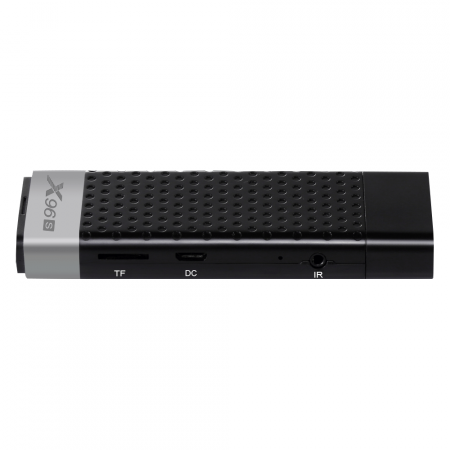

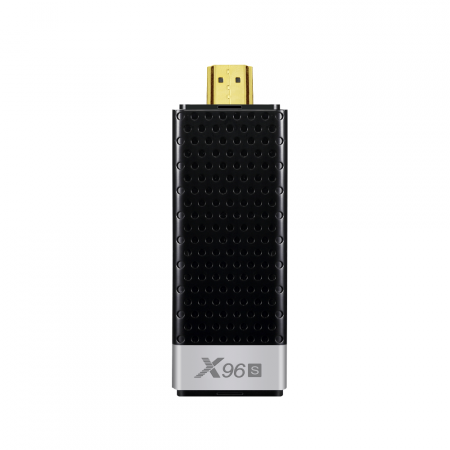

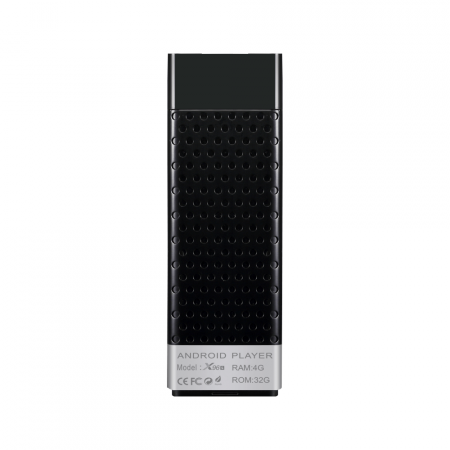

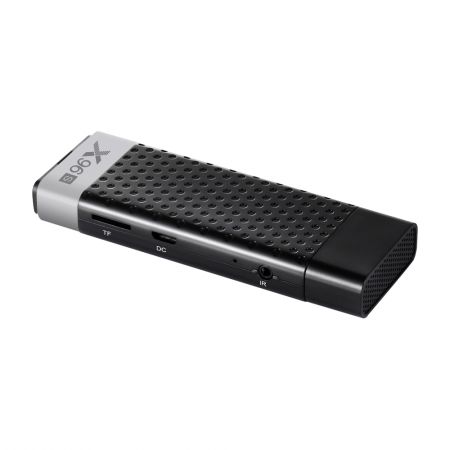

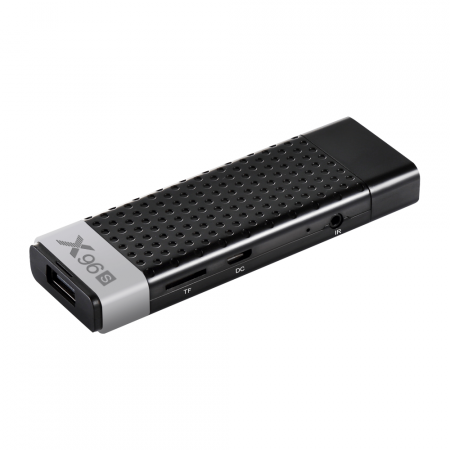

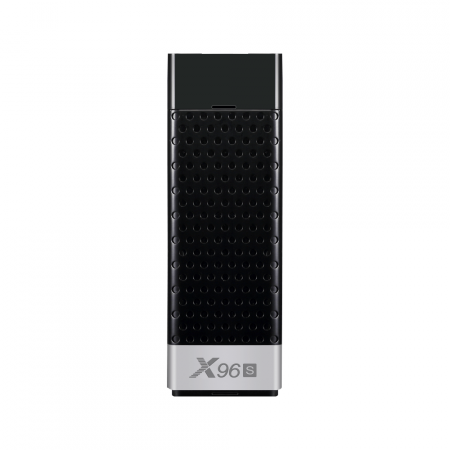

X96S TV Stick Android 8.1 AMLOGIC S905Y2 Quad Core 2GB 16GB Chinese Factory

● Android 8.1 operation system
● Amlogic S905Y2 CPU, Quad core, ARM Cortex-A53, 2.0GHz
● ARM Dvalin MP2 GPU
● 2GB / 4GB DDR4 RAM + 16GB / 32GB EMMC ROM
● 2.4GHz + 5.8GHz dual band WiFi
● Support 4K ultra HD image display
● Support H.265 decoding

Description

 Android 8.1 TV Stick X96S Amlogic S905Y2 Quad Core X96S 2.4G 5.8G Wifi 1000M /Lan Optional Android Tv Box Chinese Factory

x96s x96s x96s x96s x96s x96s x96s x96s x96s x96s

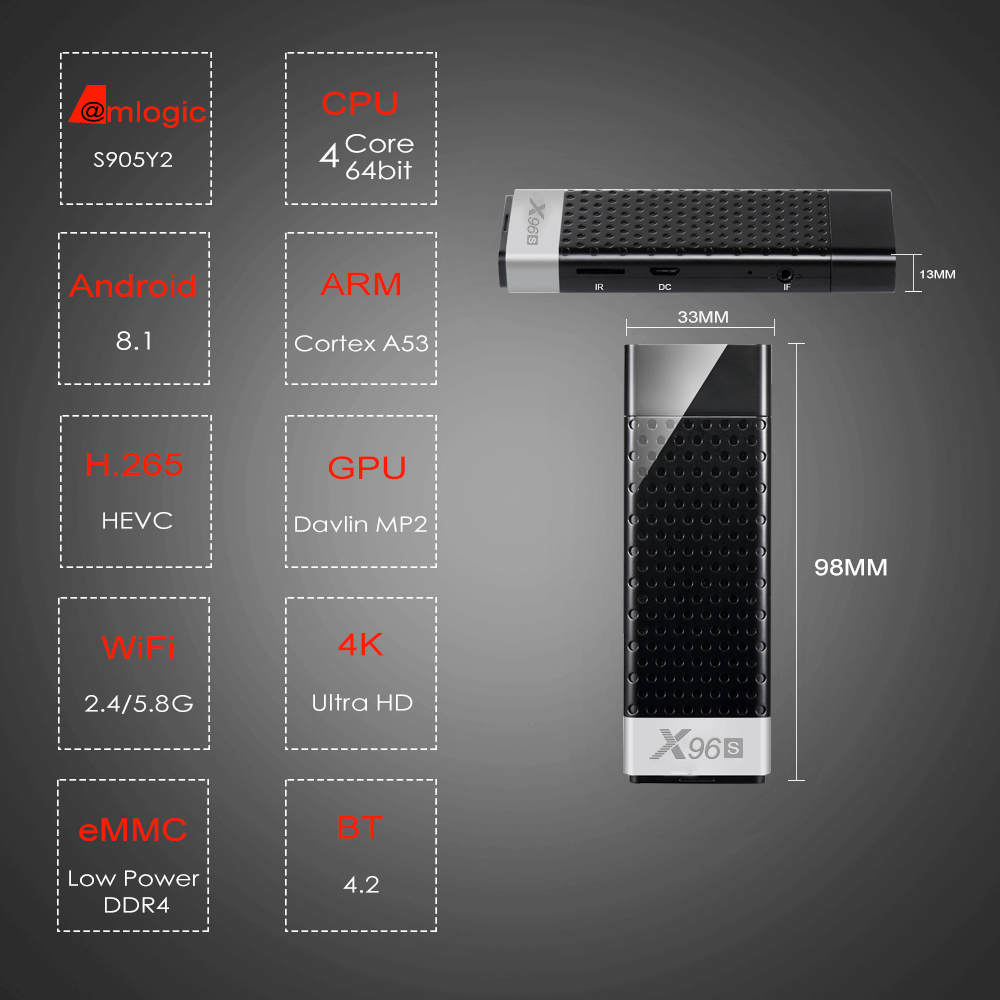

System Configuration

CPUAmlogic S905Y2 Quad Core ARM Cortex A53 @2GHz
GPUARM Dvalin MP2 GPU
MemoryLowPower DDR4: 2GB/4GB
FlasheMMC:16GB/32GB

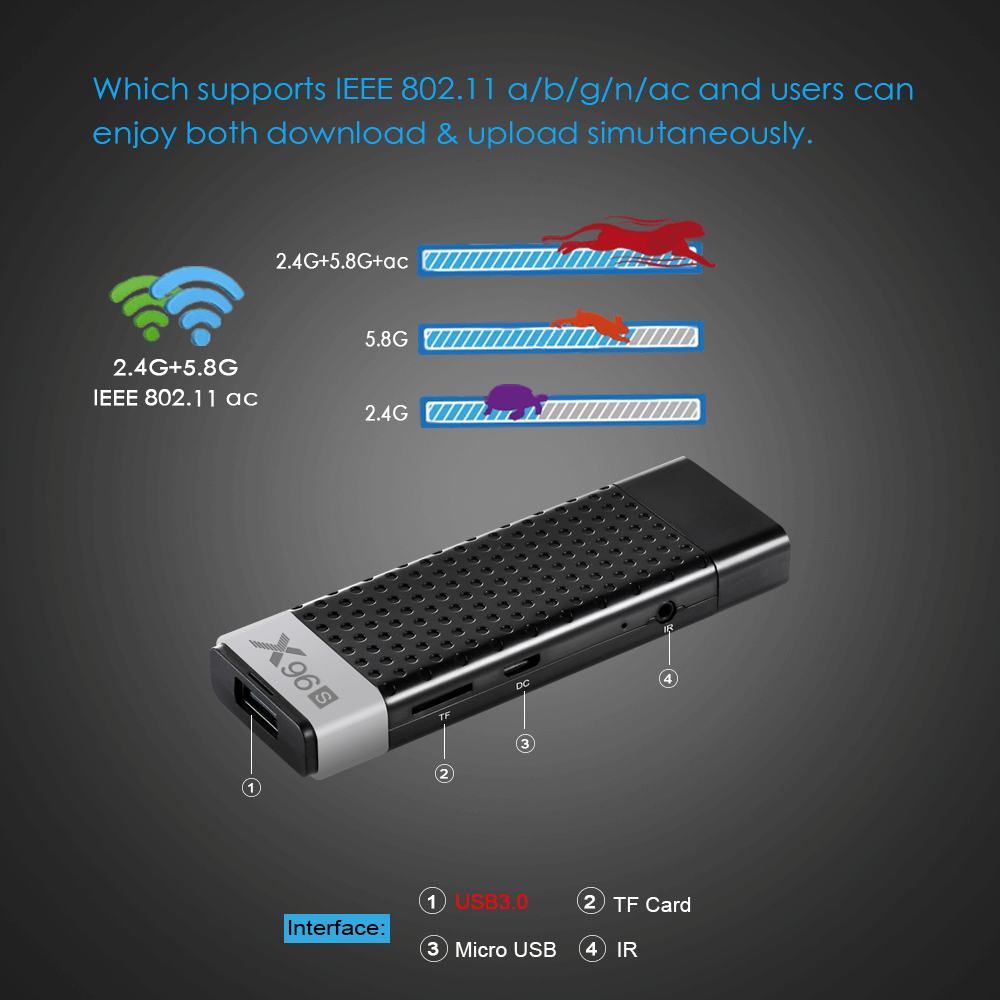

WiFiIEEE 802.11 a/b/g/n/ac ; 2.4G / 5.8G
Bluetooth Bluetooth 4.2
MoudlePlastic : Black Color
PowerDC 5V/1A
LED indicatorWorking :Blue

I/O

1*HDMIHDMI 2.1 ,Support HDMI CEC, Dynamic HDR and HDCP 2.2,4Kx2K@75 max resolution output.
1*USB,1*Micro USB1* USB 3.0 ;1*Micro USB 2.0
1*IR Remote Reciver Connect
1*TF CARDSupport 4GB/8GB/16GB/32GB/64GB

Software Specifications

OSAndroid 8.1
Video Amlogic Video Engine (AVE) with dedicated hardware decoders and encoders
 Support multi-video decoder up to 4Kx2K@60fps+1x1080P@60fps
 Supports multiple “secured” video decoding sessions and simultaneous decoding and encoding
 Video/Picture Decoding
- VP9 Profile-2 up to 4Kx2K@60fps
- H.265 HEVC MP-10@L5.1 up to 4Kx2K@60fps
- AVS2-P2 Profile up to 4Kx2K@60fps
- H.264 AVC HP@L5.1 up to 4Kx2K@30fps
- H.264 MVC up to 1080P@60fps
- MPEG-4 ASP@L5 up to 1080P@60fps (ISO-14496)
- WMV/VC-1 SP/MP/AP up to 1080P@60fps
- AVS-P16(AVS+) /AVS-P2 JiZhun Profile up to 1080P@60fps
- MPEG-2 MP/HL up to 1080P@60fps (ISO-13818)
- MPEG-1 MP/HL up to 1080P@60fps (ISO-11172)
- RealVideo 8/9/10 up to 1080P@60fps
- Multiple language and multiple format sub-title video support
- MJPEG and JPEG unlimited pixel resolution decoding (ISO/IEC-10918)
- Supports JPEG thumbnail, scaling, rotation and transition effects
- Supports *.mkv,*.wmv,*.mpg, *.mpeg, *.dat, *.avi, *.mov, *.iso, *.mp4, *.rm and *.jpg file formats
AudioSupports MP3, AAC, WMA, RM, FLAC, Ogg and programmable with 7.1/5.1 down-mixing
Built-in serial digital audio SPDIF/IEC958 input/output and PCM input/output
built-in TDM/PCM/I2S ports with TDM/PCM mode up to 384kHz x32bits x 8ch or 96kHz x 32bits x 32ch and I2S mode up to 384kHz x 32bits x 8ch
Digital microphone PDM input with programmable CIC, LPF & HPF, support up to 8 DMICs
Built-in stereo audio DAC
Supports concurrent dual audio stereo channel output with combination of analog+PCM or I2S+PCM
ImageHD JPEG、BMP、GIF、PNG、TIF
LanguageEnglish French German Spanish Italian etc multilateral languages

Appliactions

OnlineBrowse all video websites,support Netflix,Hulu,Flixster, Youtube, etc.
AppsApps download freely form android market、amazon app store etc.
MediumLocal Media playback,Support HDD, U Disck ,TF Card .
Talk onlineSupport SKYPE video call ,MSN , facebook ,twitter ,QQ etc
OthersSupport Email,office suit etc.
Support DLNA function
Support 2.4G wireless mouse/keyboard

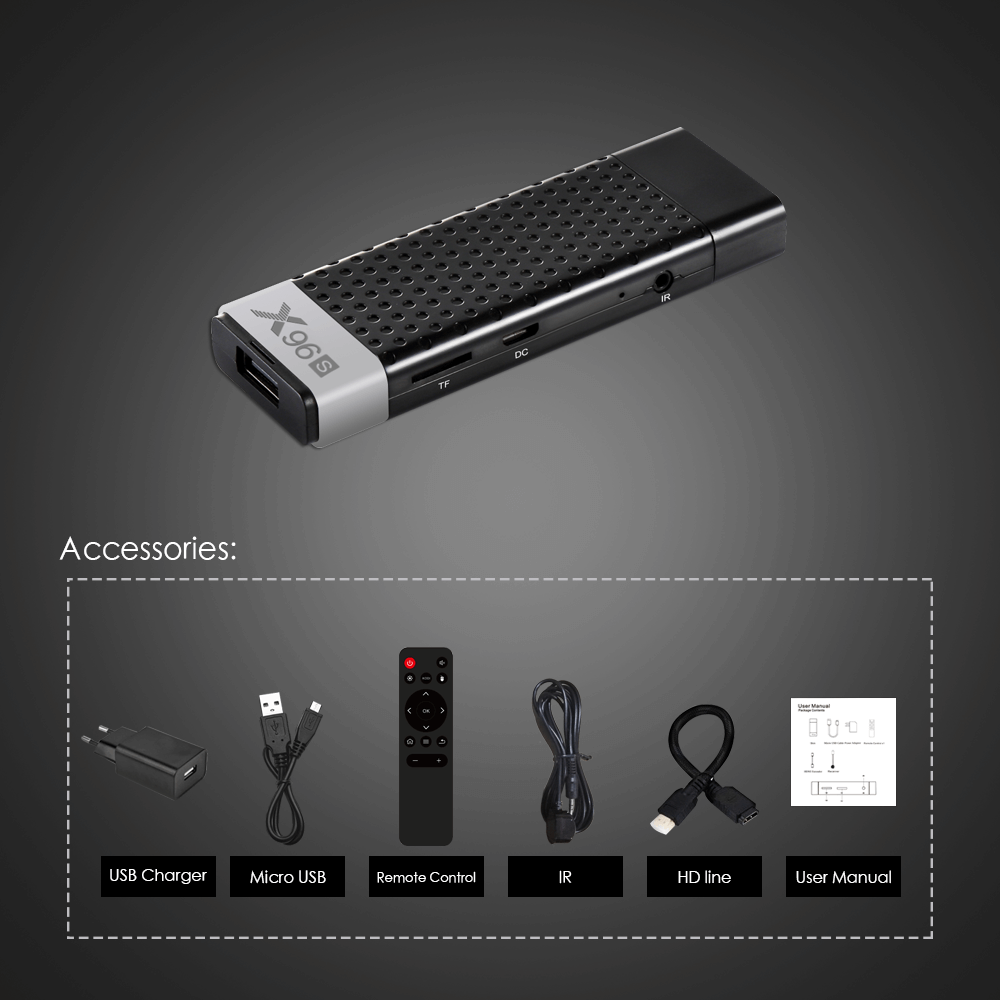

Accessories1、HDMI cable *1
2、IR Line *1
3、IR Remote *1
4、User Manual *1
5、Package box *1
6、Micro USB Line *1
7、USB adapter *1
