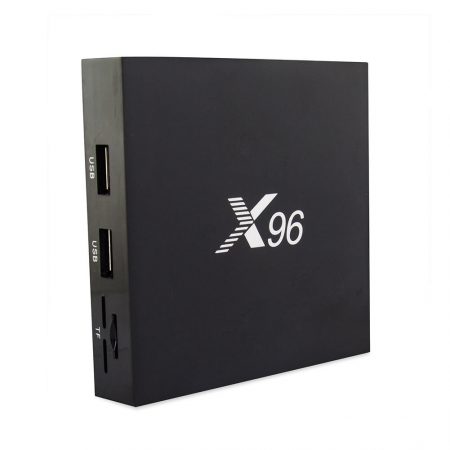

X96 TV Box Android 6.0 Amlogic S905X 2G+16G

● With Android 6.0 system, we will have high-speed feedback and smooth response.
● The processor in this chip is an RK3229 with a maximum clock speed of up to 2.0GHz. Use the Mali-400MP as GPU.
● Support H.265 video code, enjoy the high-resolution video even at a low-internet-speed environment.

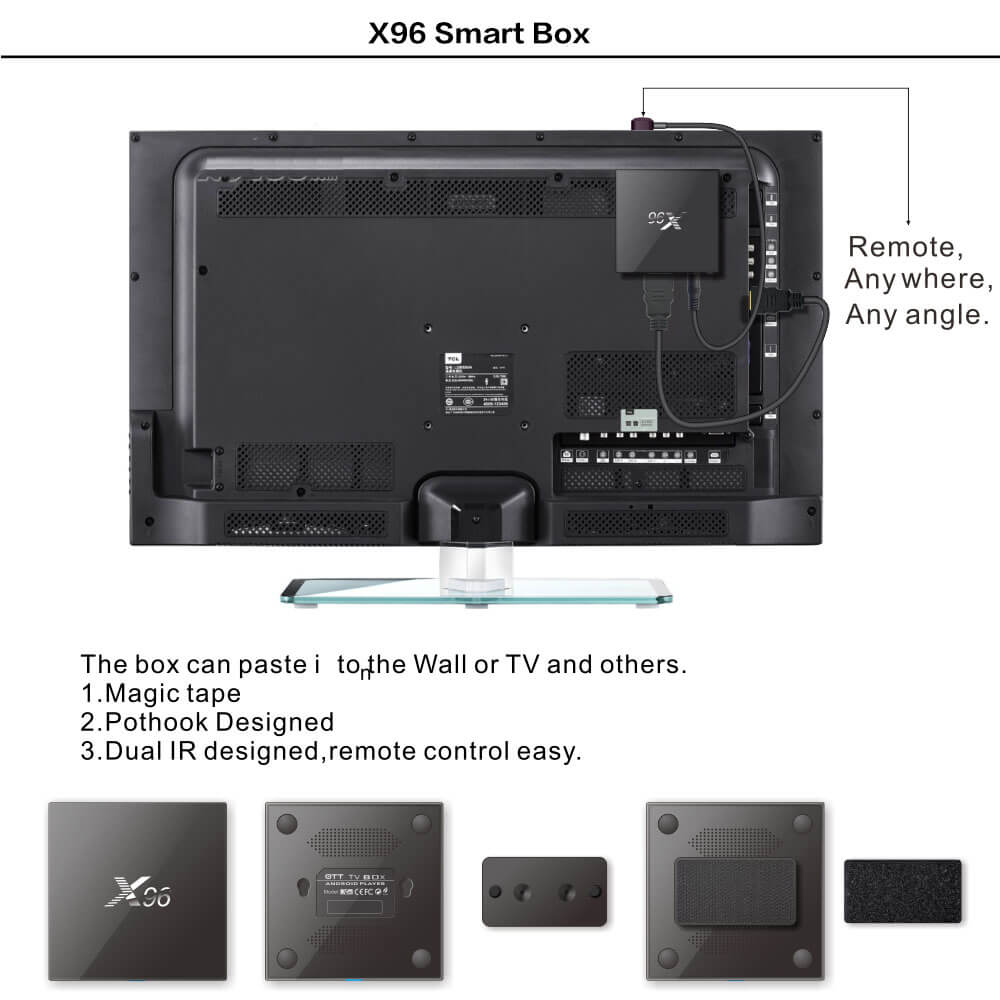

● HDMI 2.0 connector: you can go directly to let your TV and X96 TV Box are connected through an HDMI cable and set up your home cinema for the best 4K x 2K Full HD multimedia experience.
● It integrated the latest media player software, with full functions of the multimedia entertainment.

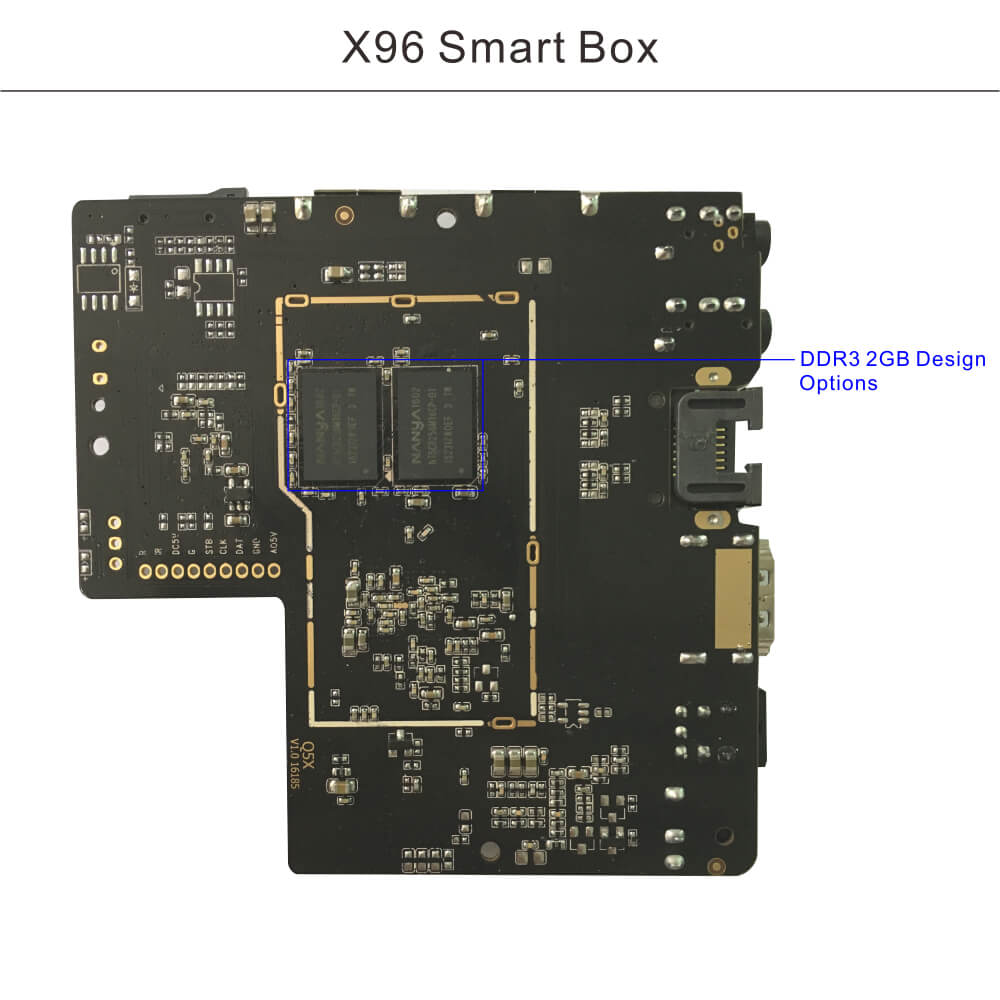

● It has a memory of 2GB DDR3 RAM, with 16GB eMMC ROM, easily enjoy games and videos.
● Support 5.1 surround sound output, capture your ears with actual listening feelings.

Request quotation

Description

Android 6.0 TV box X96 Amlogic S905X with 2.4G WiFi TV BOX X96 from Chinese factory

x96 x96 x96 x96 x96 x96 x96 x96 x96

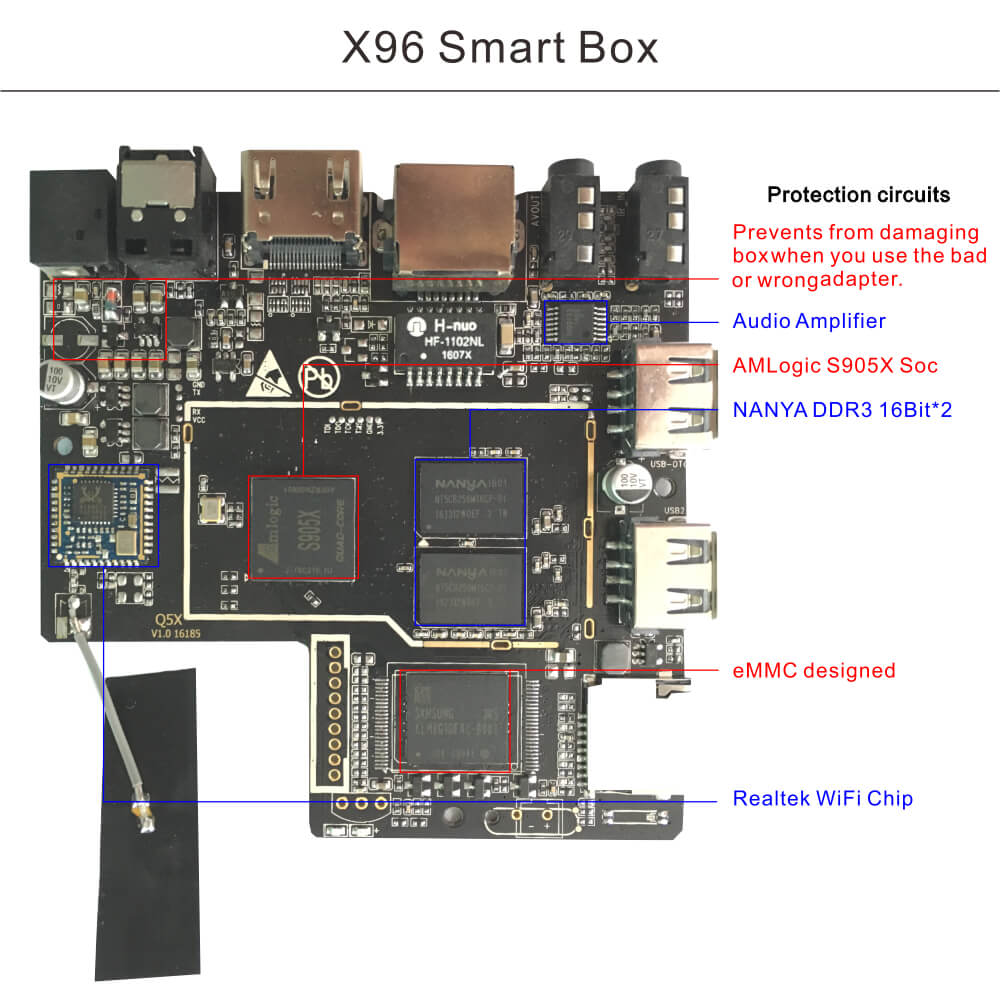

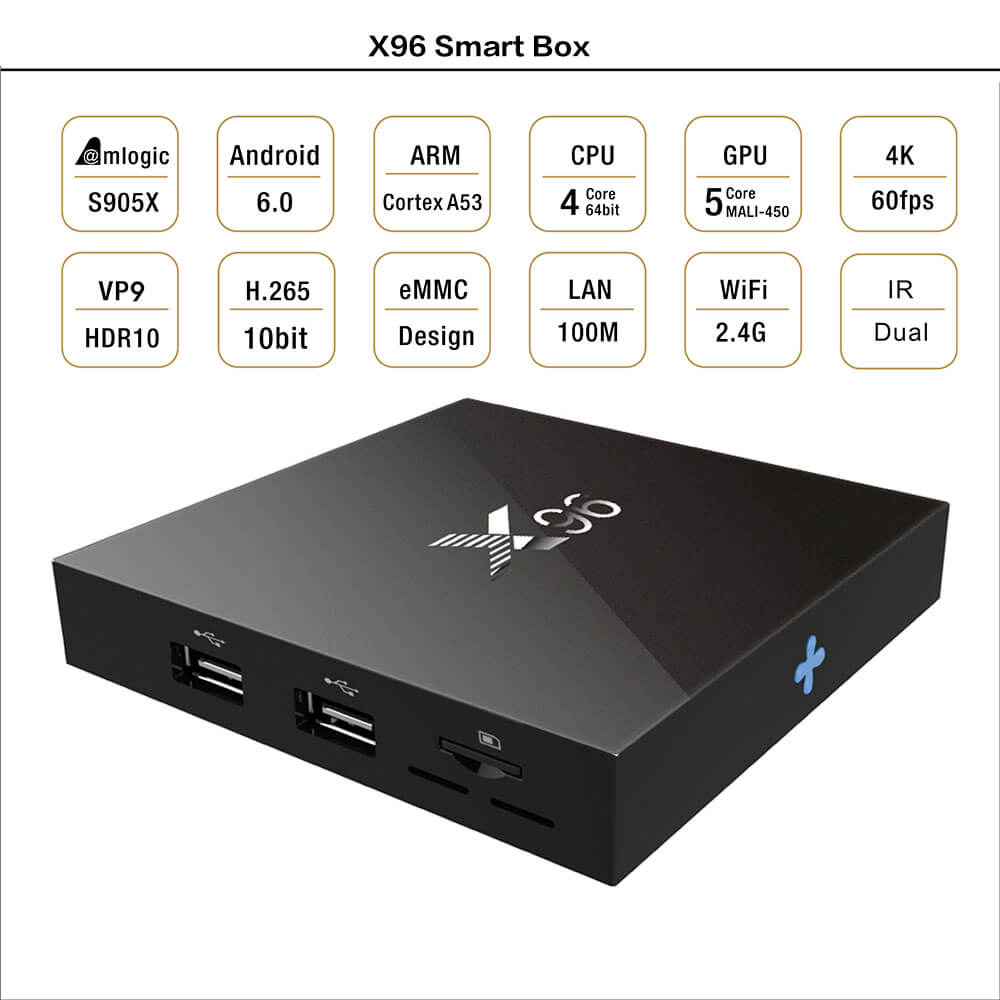

Hardware Specifications

CPUAmlogic S905X Quad Core ARM Cortex A53 @2GHz
GPUPenta-core Mali-450MP GPU @ 750MHz,
MemoryDDR3：1GB (Option: 2GB)
FlasheMMC：8GB (Option:16GB )
WiFiIEEE 802.11 b/g/n
MoudlePlastic : Black Color

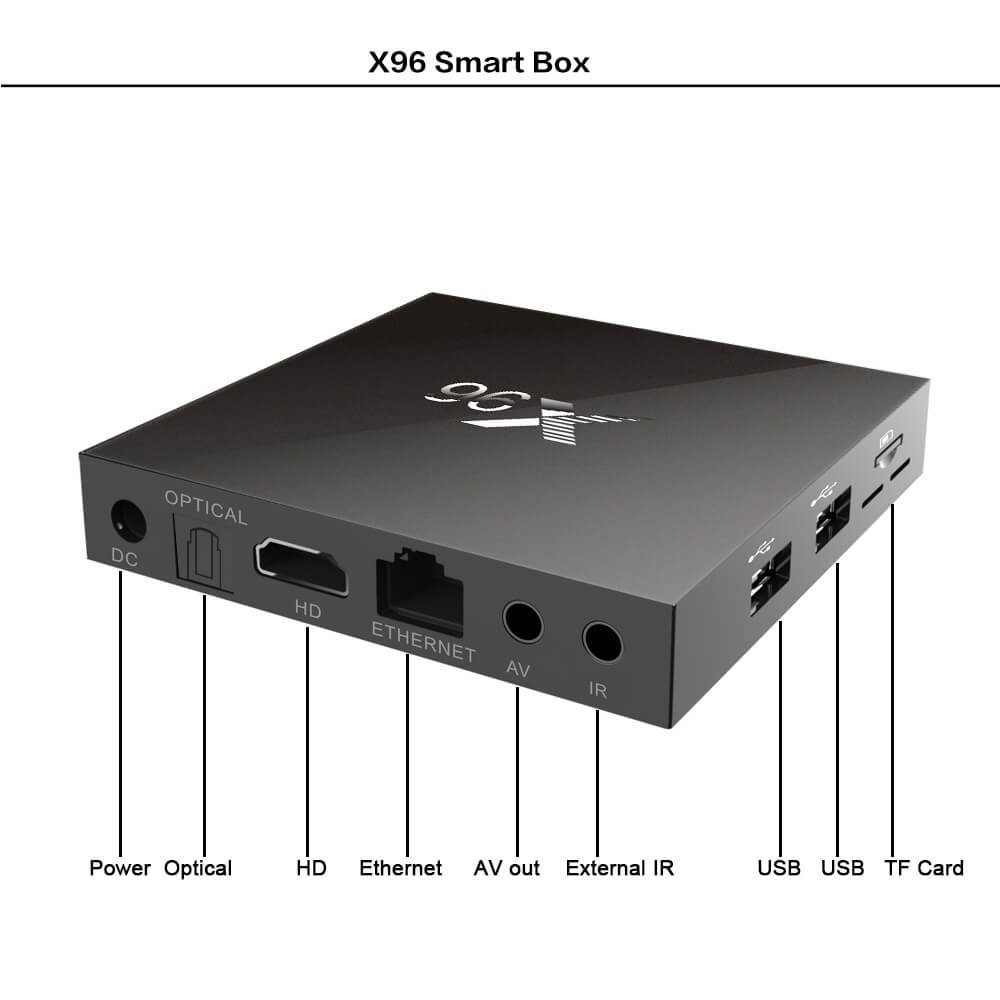

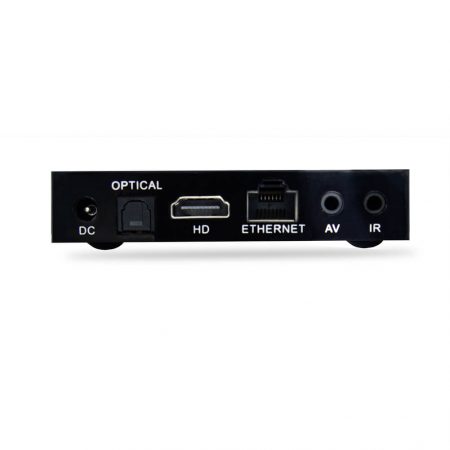

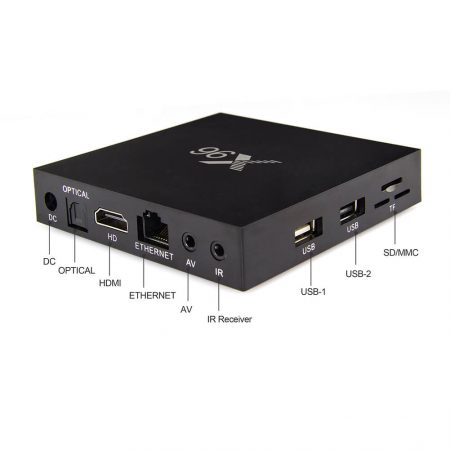

I/O

1*HDMI4K*2K UHD Output, HDMI 2.0A
1*AV OUT480i/576i standard definition output

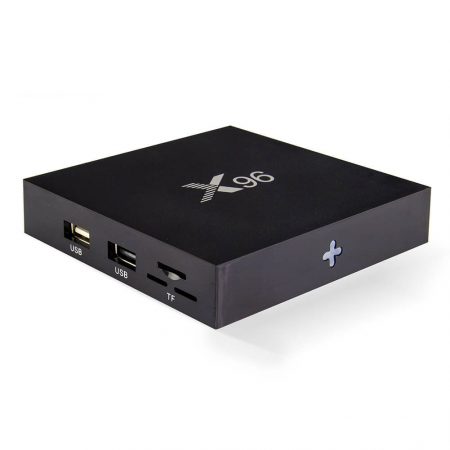

2*USB 1* USB Host Port ,1*USB Device
1*OPTICALDigital Audio output
1*RJ45Ethernet Interface
1*TF CARDSupport 4GB/8GB/16GB/32GB/64GB

Power Supply

Power supply DC 5V/2A
LED indicatorWorking ：Blue; Standby：Red

Software Specifications

OSAndroid 6.0 Marshmallow
Video* AMLogic video Engine(AVE)with dedicated hardware decoders and encoders
* Supports multiple "secured"video decoding sessions and simultaneous decoding and encoding
* Video/Picture Decoding
-VP9 Profile-2 up to 4K*2K@60fps
-H.265 HEVC MP-10@L5.1 up to 4K*2K@60fps
-H.264 AVC HP@L5.1 up to 4K*2K@30fps
-H.264 MVC up to 1080P@60fps
-MPEG-4 ASP@L5 up to 1080P@60fps(ISO-14496)
-WMV/VC-1 SP/MP/AP up to 1080P@60fps
-AVS-P16(AVS+) /AVS-P2 JiZhun Profile up to 1080P@60fps
-MPEG2 MP/HL up to 1080P@60fps
-MPEG1 MP/HL up to 1080P@60fps
-RealVideo 8/9/10 up to 1080P@60fps
* Low latency 1080P H.264 60fps encoder
* HDR10 and HLG HDR Video Processing
* Supports *.mkv,*.mpg,*.wmv,*.mpeg,*.dat,*.avi,*.mov,*.iso,*.mp4,*.rm and *.jpg file formats
* Video/Picture Encoding
-Independent JPEG and H.264 encoder with configurable performance/bit-rate
-JPEG image encoding
-H.264 video encoding up to 1080P@60fps with low latency
AudioLow power MediaCPU with DSP audio processing
Supports MP3,AAC,WMA,RM,FLAC,Ogg and programmable with 7.1/5.1 down-mixing
Built-in stereo audio DAC
Built-in SPDIF/IEC958 and PCM serial digital audio input/output
Supports concurrent dual audio stereo channel output with combination of analog+PCMo or I2S+PCM
ImageHD JPEG、BMP、GIF、PNG、TIF
LanguageEnglish French German Spanish Italian etc multilateral languages

Appliactions

OnlineBrowse all video websites,support Netflix,Hulu,Flixster, Youtube, etc.
AppsApps download freely form android market、amazon app store etc.
MediumLocal Media playback,Support HDD, U Disck ,SD/MMC Card .
Talk onlineSupport SKYPE video call ,MSN , facebook ,twitter ,QQ etc
OthersSupport Email,office suit etc.
Support DLNA function
Support 2.4G wireless mouse/keyboard
