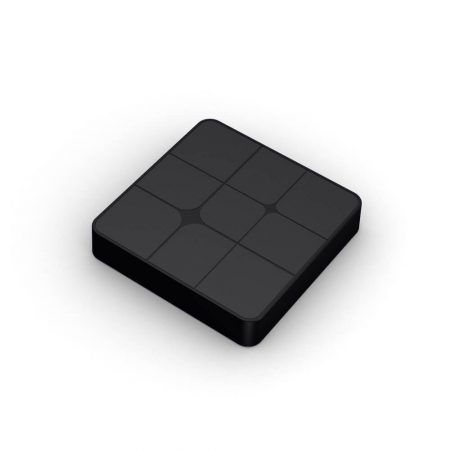

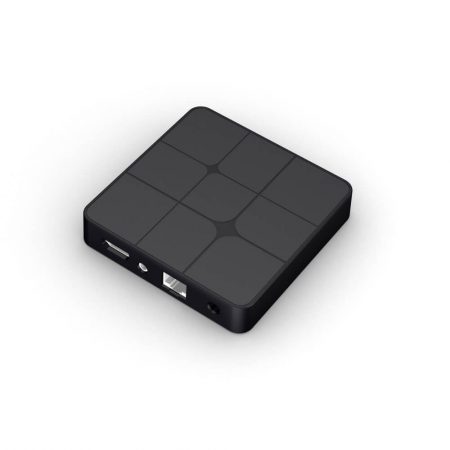

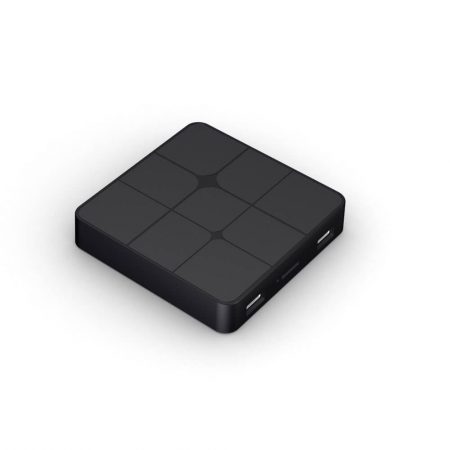

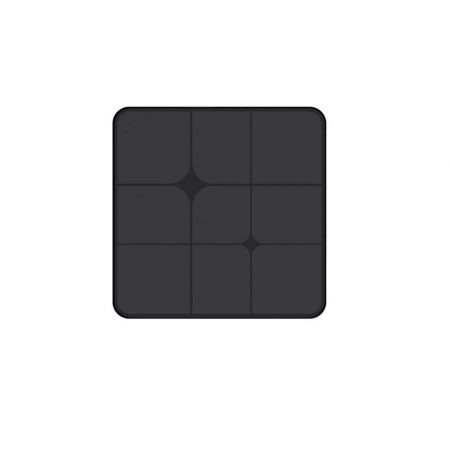

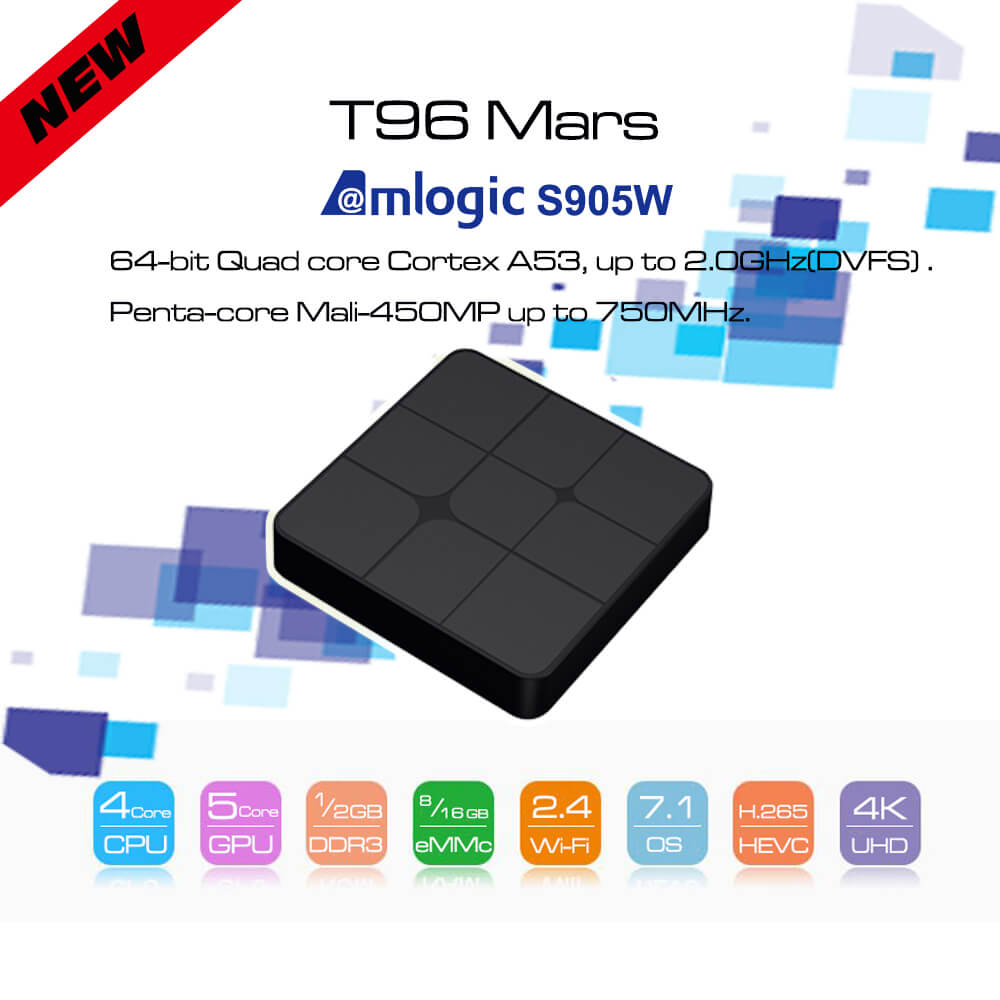

T96 Mars TV Box S905W Android 7.1 Chinese Factory

● Android 7.1.2 operation system

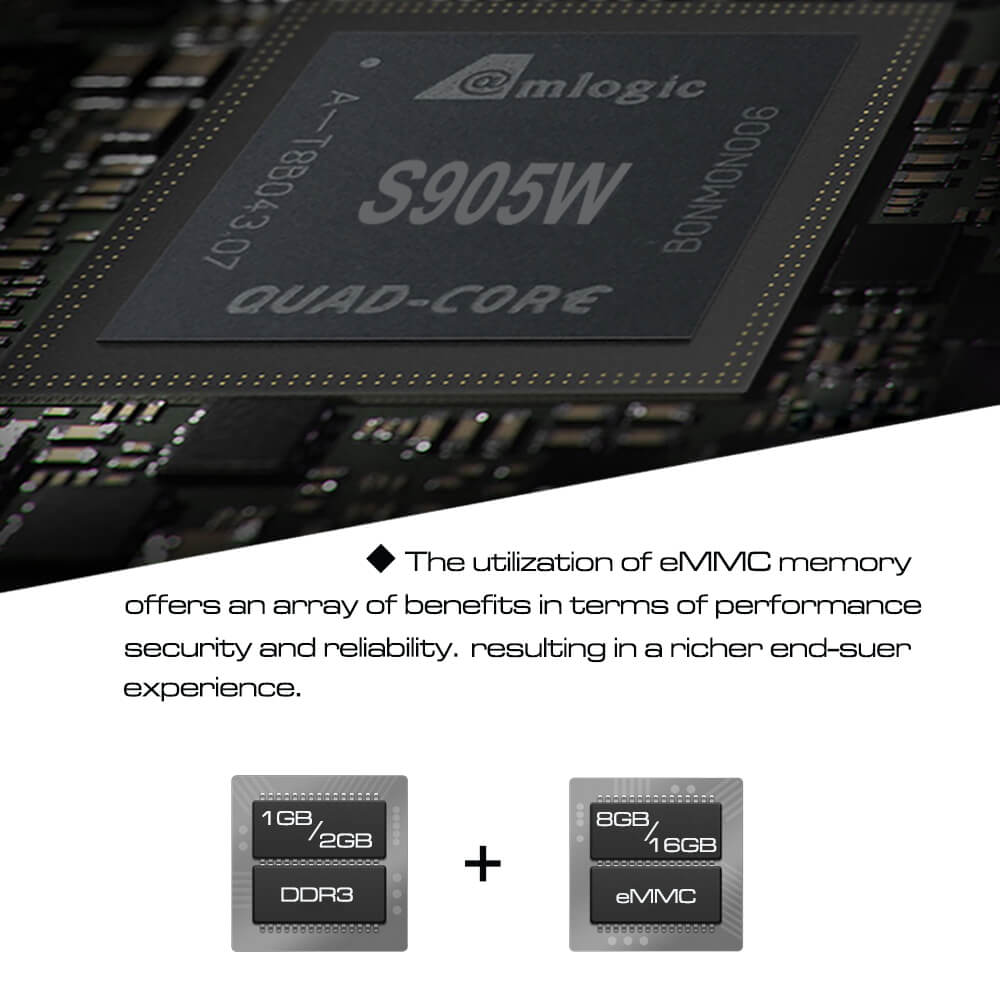

● Amlogic S905W CPU, Cortex-A53, quad-core, 2.0GHz
● Mali-450MP GPU, penta-core, 750MHz
● 2GB RAM + 16GB ROM / 1GB RAM + 8GB ROM
● 4K ultra HD images output
● H.265 decoding, less bandwidth and low consumption
● 2.4GHz WiFi + Bluetooth 2.1

Description

T96 mars 1GB/2GB RAM 8GB/16GB support 4K android tv box s905w Quad core Android 7.1 TV box



t96 mars t96 mars t96 mars t96 mars t96 mars t96 mars t96 mars t96 mars

System Config.

CPUAmlogic S905W Quad Core ARM Cortex A53 @2GHz
GPUPenta-core Mali-450MP GPU @ 750MHz
RAMDDR3 1GB / 2GB
ROMOnboard eMMC Flash 8GB/16GB
Expand MemoryMicro SD Card (Maximum support 32GB)
AntennaBuilt-in antenna for Wi-Fi

Communication

Ethernet100Mbps LAN
Bluetooth2.1
Wi-FiIEEE 802.11 b/g/n

Media

UHD 4K×2KSupport
Full HD 1080PSupport
HEVC H.265 Support
Video/Picture Decoding* AMLogic video Engine(AVE)with dedicated hardware decoders and encoders
* Supports multiple "secured"video decoding sessions and simultaneous decoding and encoding
* Video/Picture Decoding
-VP9 Profile-2 up to 4K*2K
-H.265 HEVC MP-10@L5.1 up to 4K*2K@
-H.264 AVC HP@L5.1 up to 4K*2K
-H.264 MVC up to 1080P@60fps
-MPEG-4 ASP@L5 up to 1080P@60fps(ISO-14496)
-WMV/VC-1 SP/MP/AP up to 1080P@60fps
-AVS-P16(AVS+) /AVS-P2 JiZhun Profile up to 1080P@60fps
-MPEG2 MP/HL up to 1080P@60fps
-MPEG1 MP/HL up to 1080P@60fps
-RealVideo 8/9/10 up to 1080P@60fps
* Low latency 1080P H.264 60fps encoder
* HDR10 and HLG HDR Video Processing
* Supports *.mkv,*.mpg,*.wmv,*.mpeg,*.dat,*.avi,*.mov,*.iso,*.mp4,*.rm and *.jpg file formats
* Video/Picture Encoding
-Independent JPEG and H.264 encoder with configurable performance/bit-rate
-JPEG image encoding
-H.264 video encoding up to 1080P@60fps with low latency
Audio formatLow power MediaCPU with DSP audio processing
Supports MP3,AAC,WMA,RM,FLAC,Ogg and programmable with 7.1/5.1 down-mixing
Built-in stereo audio DAC
Built-in SPDIF/IEC958 and PCM serial digital audio input/output
Supports concurrent dual audio stereo channel output with combination of analog+PCMo or I2S+PCM

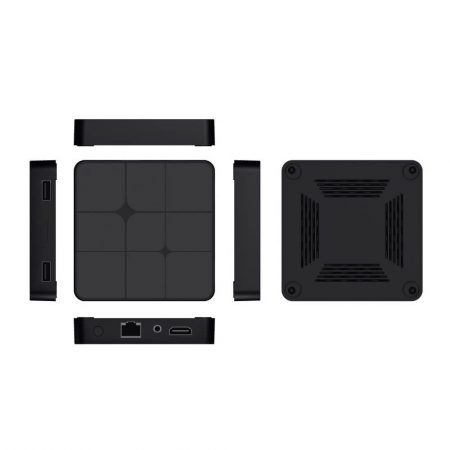

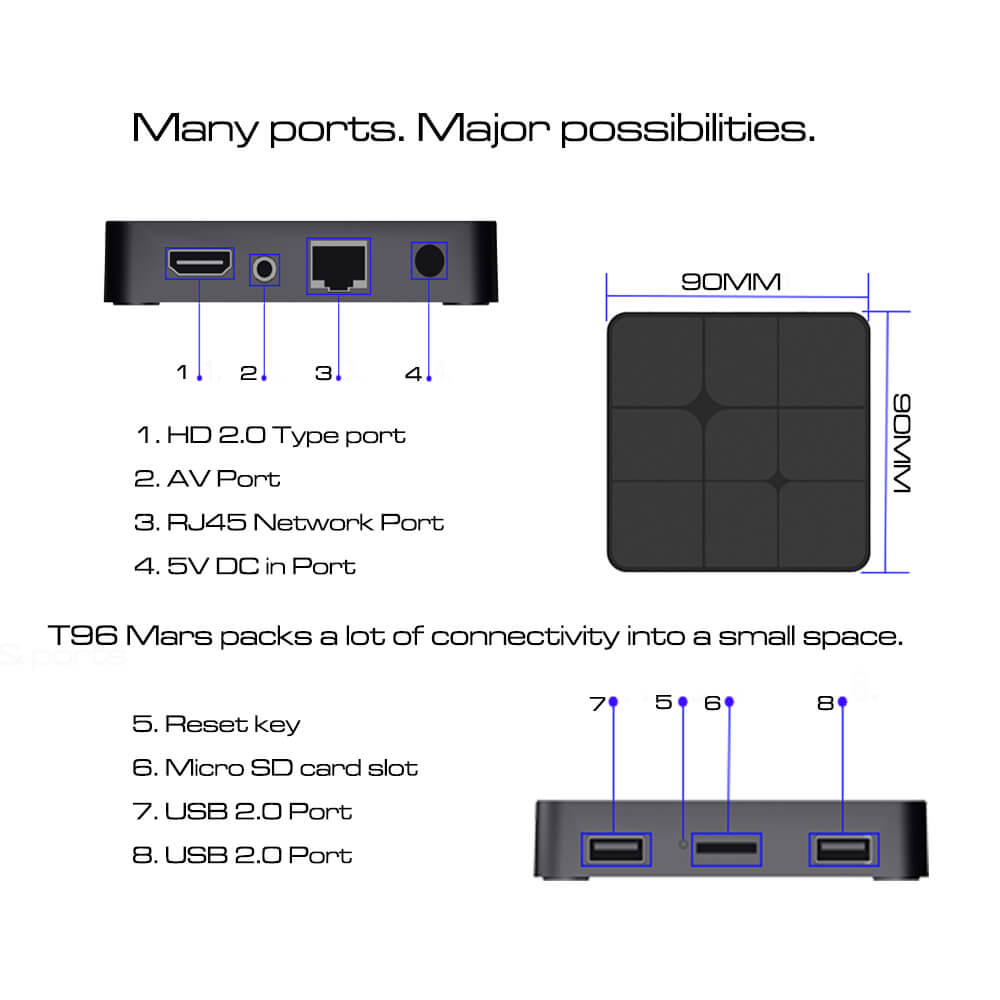

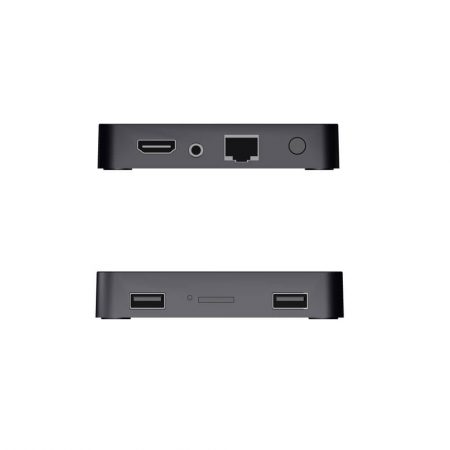

I/O

USB1* USB Host Port ,1*USB Device
DC-in1*DC in Jack
HDMI4K*2K UHD Output, HDMI 2.0A
AV1*AV Port 480i/576i standard definition output
RJ451*RJ45
SD Card Slot1* Micro SD card slot Support 4GB/8GB/16GB/32GB/64GB

Power management

Adapter5V 2A

Software Config

OS Android 7.1.2
Language Multi -language
Keyboard Qwerty keyboard
