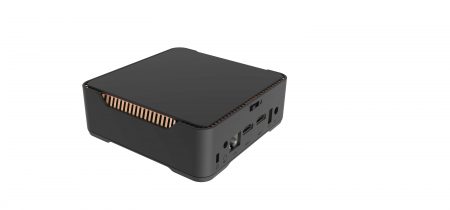

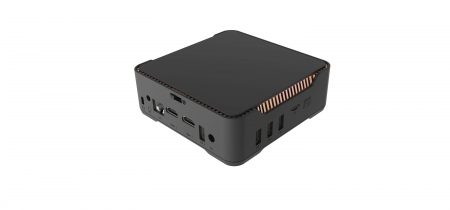

AK3V Mini PC Windows10 Apollo lake

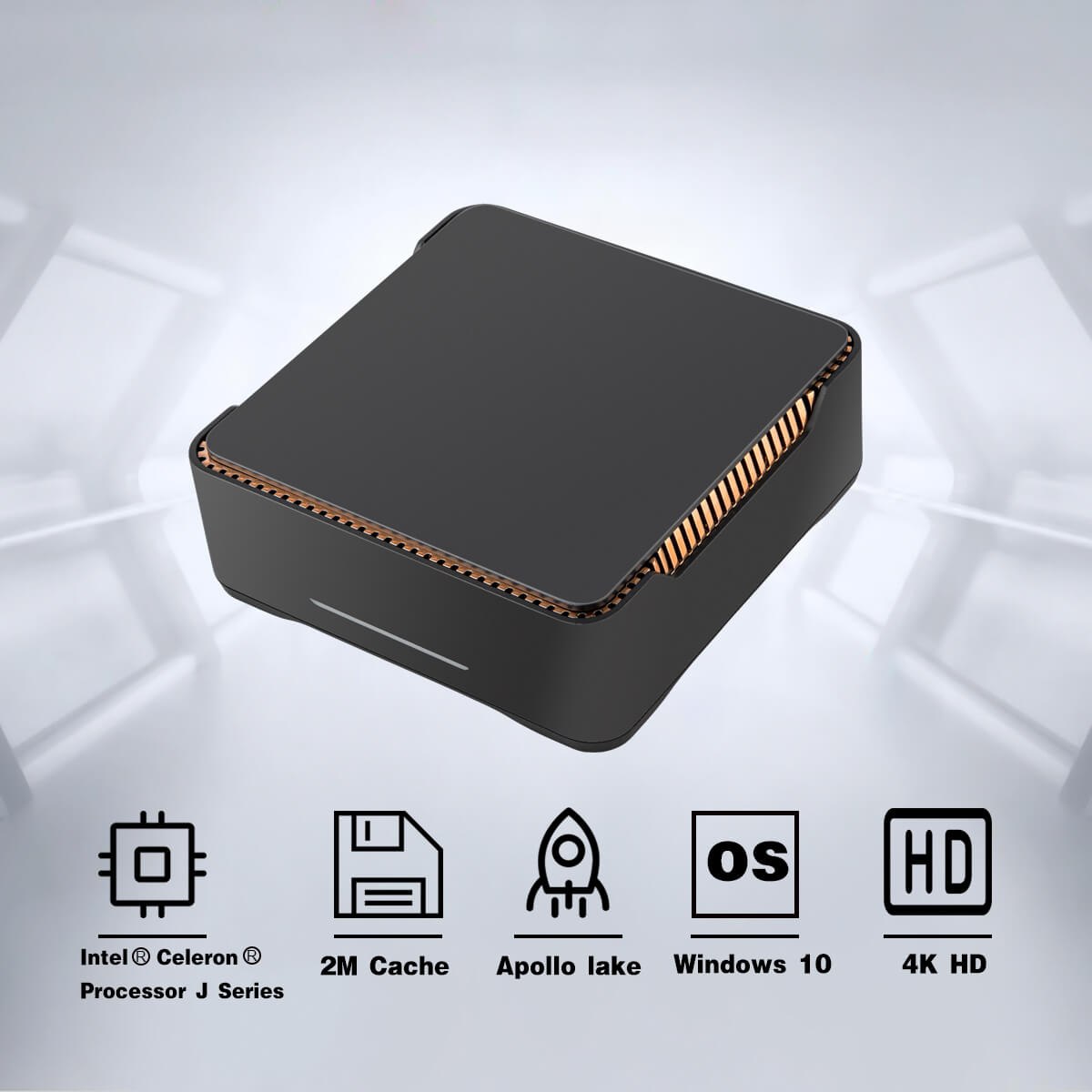

  • Intel Apollo Lake J3455

J3455, a quad-core processor, operates between 1.5 and 2.3GHz. Under the hood, it packs 2MB of L2 cache, TDP of 10W and an Intel HD Graphics 500 GPU.

  • Pre-installed Windows 10

AK3V Mini PC is pre-installed Windows 10 home so that our users are able to enjoy the advanced functions of Windows OS directly.

  • DDR3 6GB RAM, eMMC 64GB ROM

Configure 6GB memory and 64GB of storage space, with smooth and responsive navigation and apps that launch quickly.

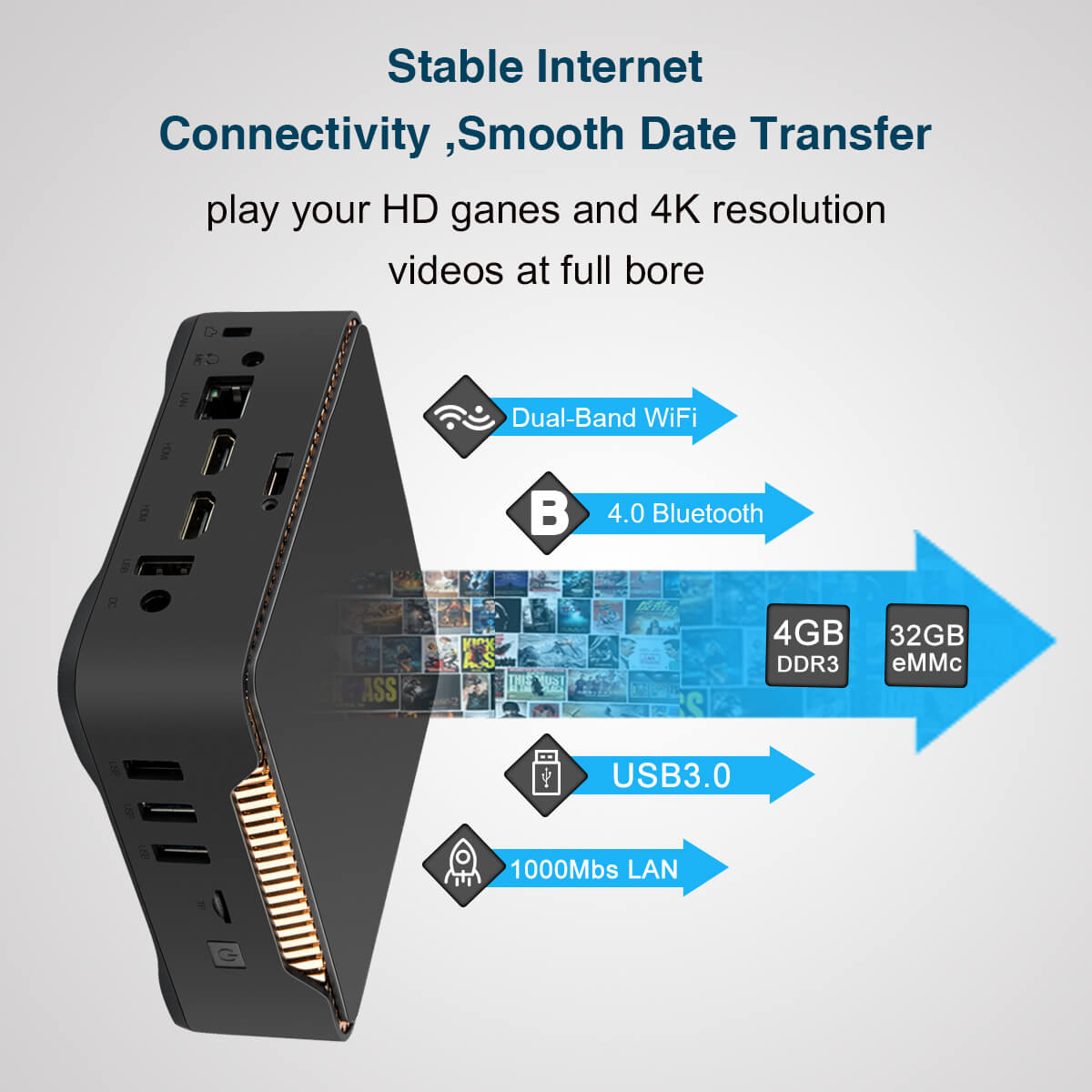

  • Dual Band WIFI

With support for 2.4Ghz and 5.8Ghz band, it can transmit higher amounts of data, and its naturally less congested.

  • Gigabit LAN

Gigabit LAN provides a data rate of 1 billion bits per second.

Description

WIN 10 Linux Intel AK3V MINI PC Dual Band WIFI 4G 32G EMMC Dual HD with AK3V J3355/J3455/J4205 MINI PC

ak3v ak3v ak3v ak3v ak3vak3v ak3v

Parameter

Case N1MaterialMetal
Dimension128*128*45mm
ColorIron Grey,black, Silver
CPU
Support Intel® Core™ Apollo Lake Celeron DC or QC, J3355/J3455/J4205
MemoryDDR3-1600 SO-on bard slot,max to 8GB
Storage Interface1*SATAIII 6Gb/s SSD/HDD(7 thickness),
1*M-SATA(support 32GB/64GB/128GB/258GB SSD )
Onboard GraphicsIntel® HD Graphics500
1*HDMI 1.4
LAN * 1Built-in Realtek RTL8111F LAN chip,
AudioCmedia hs100b
WirelessDual band WIFI support 2.4GB/5.0GB/3165d

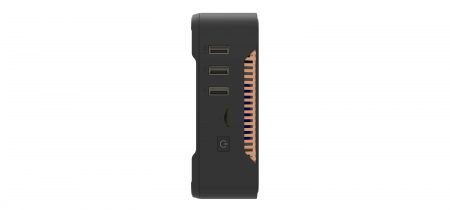

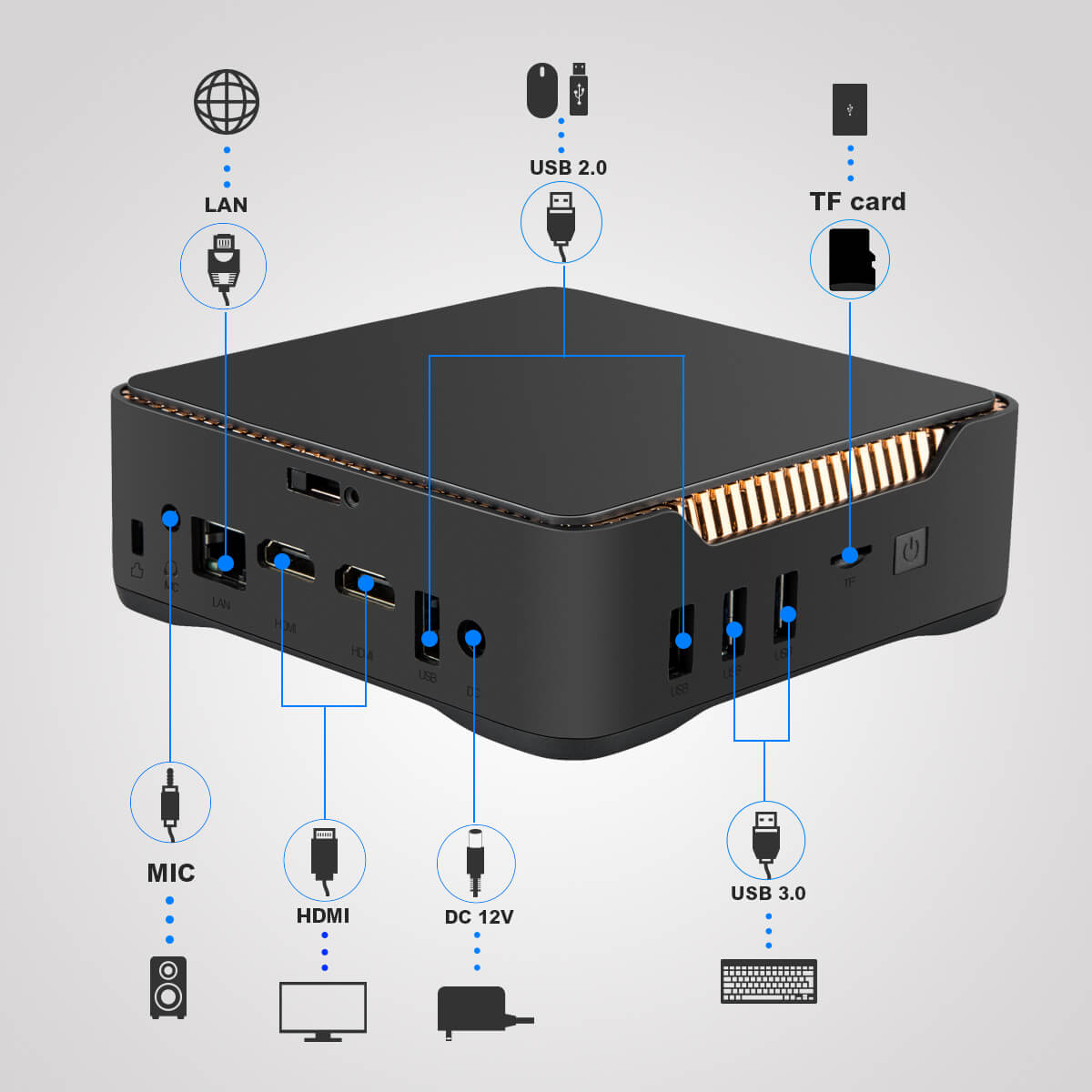

Front I/O port2* USB 3.0
2* USB 2.0

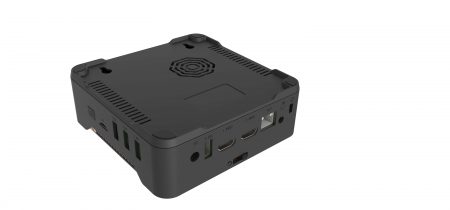

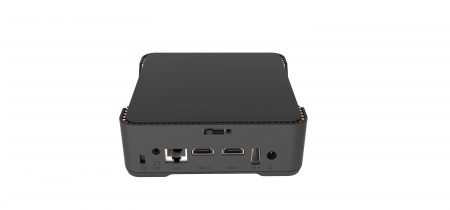

Back I/O port1* DC_IN; 1* HDMI(1.4a)*2; VGA*1
1* RJ45; 1* Tf-card
MIC*1, Audio*1
BIOSAMl EFI BIOS
Power Supply12V/2.5A AC adapter
Operating SystemWIN 10(64 bits), Linux,

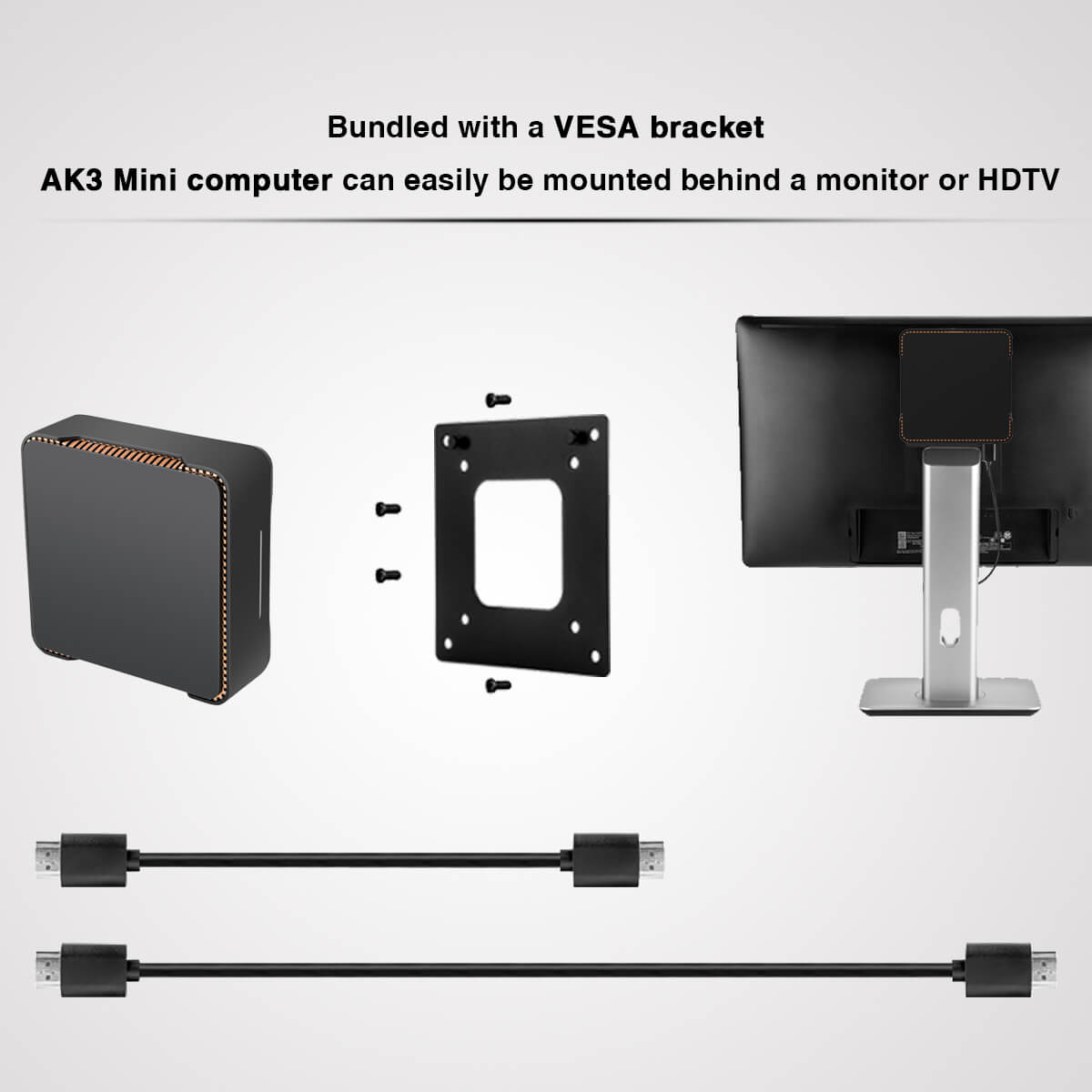

VESABracket included and screws
Environment0~35 degre celcius
